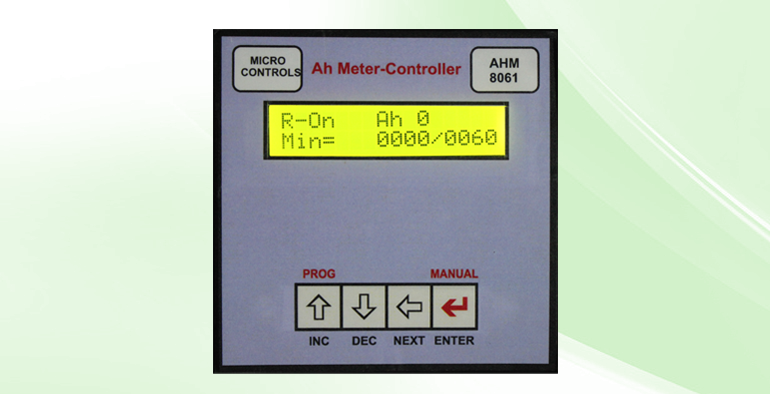

AMPERE HOUR METER AHM 8061
Features :
- Extremely user Friendly Programming
- 16 x 2 wide angle alphanumeric backlit lcd display panel
- User selectable display in amp.Hours or amp.Minutes
- Two Operating Modes : Mode 1 : Presettable Ah limits, Mode 2 : Presettable Time Limits
- Non volatile memory to store Total Ah and Batch Ah values
- Control Relay for cutoff of Rectifier/Electroplating apparatus.
- Provision for Front Panel and Rear Panel Start/Reset Push Buttons
- User Programmable Shunt mV values, Field Calibration of Shunt values possible.
- Manual Operation for testing purposes provided.
- Keypad lock to prevent tampering of data
| Technical Specifications : | |
|---|---|
| Display : | 16 x 2 backlit LCD display panel. |
| Keyboard : | 4 x 1 Tactile keyboard |
| Relay Output : | 5 Amps@ 240 VAC, resistive load. |
| Memory Backup : | Lithium Cell for RTC. |
| Data Display | Mode1: Row1 - Total Amp.Hr or Amp.Min, Row2 - Acual Ah/Am, Set Ah/Am |
| Mode2: Row1 - Acual Amps, Total Amp.Hr, Row2 - Elapsed Time/Set Time | |
| Temperature : | Operating 0 - 50 deg C. Storage : 70 deg C |
| Enclosure & Mounting : | ABS Plastic, Panel Mounting. |
| Dimensions | 96 x 96 x 85 mm ( Depth), Cutout needed : 92x92 mm. |
| Input | Single Phase, 230 / 240 VAC, 50 Hz. |
Applications :
Battery charge/discharge monitors/controllers, Dosing control operations, Rectifier control for precise control during Gold/Silver/Nickel plating processes, fixed charging processes, etc
