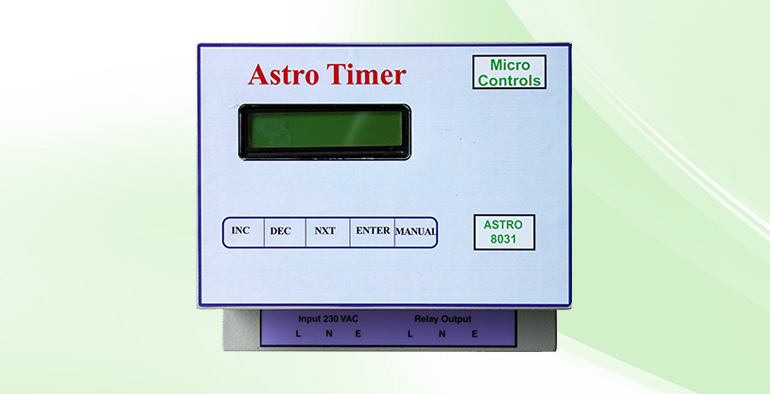

Astro Time Switch ASTRO 8031

Features :

  • User Friendly Programming and Simple to Install
  • 16 x 2 wide angle alphanumeric backlit lcd display panel
  • User selectable two different modes of time and calendar display
  • 3 different modes of operation,
  • Sunset-on, Sunrise-off
  • Sunset on- User set time off, User set time on – Sunrise off
  • User set time1 on - User set time1 off, User set time2 on – User set time2 off
  • Sunrise-sunset times preprogrammed for 5 different cities in India.
  • Twilight-Offset time for greater energy saving, user settable
  • No dependency on light sensor.
  • User settable Holiday function (useful for office/factory lights) (Relay off on holidays)
  • Manual push button provided for testing/replacement of lights.
Technical Specifications :
Display : 16 x 2 backlit LCD display panel.
Keyboard : 5 x 1 Tactile keyboard
Relay Output : 5 Amps@ 240 VAC, resistive load.
Time Base : Accurate Quartz Crystal
Memory Backup : Battery less memory, Life span – 30 years. Lithium Cell CR2032 for Real Time.
Manual Operation : Through push button on front panel.
Temperature : Operating 0 – 50 deg C. Storage : 70 deg C
Enclosure & Mounting : Metallic, Wall Mounting.
Dimensions: 160(L) x 110(W) x80(H) mm
Input: 230/240 VAC, 50 Hz.
