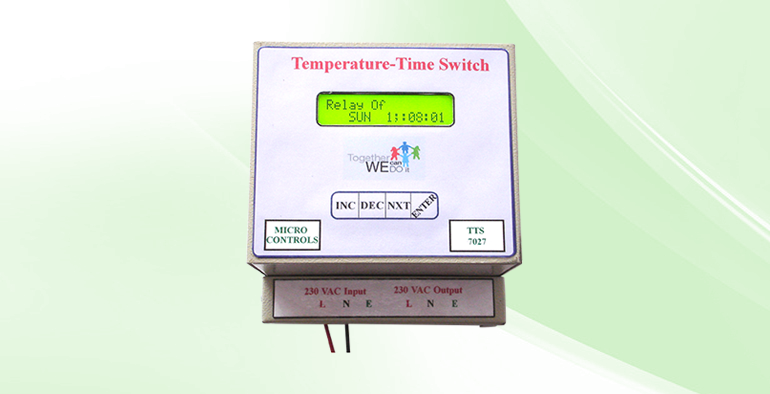

Temperature Time Switch TTS 7027
Features :
- User Friendly Programming
- Simple to Install(No electrician required)
- 16 x 2 wide angle alphanumeric backlit lcd display panel
- Weekly Programming provided
- Reliable Solid state Temperature Sensor for Ambient Temperature sensing.
- Built in Cyclic Timer/Temperature Controller for ACs and Water coolers. (can be selected by software)
| Technical Specifications : | |
|---|---|
| Display : | 16 x 2 backlit LCD display panel. |
| Keyboard : | 4 x 1 Tactile keyboard |
| RTC Time Base : | Accurate Quartz Crystal Oscillator. |
| Timing Accuracy : | 6/7 seconds per month. |
| Memory Backup : | Lithium Cell for RTC. |
| Programmable Alarms/Set points : | 70 |
| Time Display : | 24 hour format, with weekday and Relay status ( on or off) |
| Enclosure & Mounting : | Metallic, Wall Mounting. |
| Temperature : | Operating 0 - 50 deg C. Storage : 70 deg C |
| Enclosure & Mounting : | Metallic, Wall Mounting. |
| Dimensions : | Length - 120 mm, height - 132 mm, Depth - 67 mm . |
| Input: | 230/240 VAC, 50 Hz. |
Applications :
Air conditioners, Water coolers, Exhaust Fans/Blowers, Air curtains, Street Lights, Water Fountains, Battery Chargers,
Oil Heaters, Water Pumps, Domestic Lights, Compound Lights, etc.
