///LED Timers and Counters

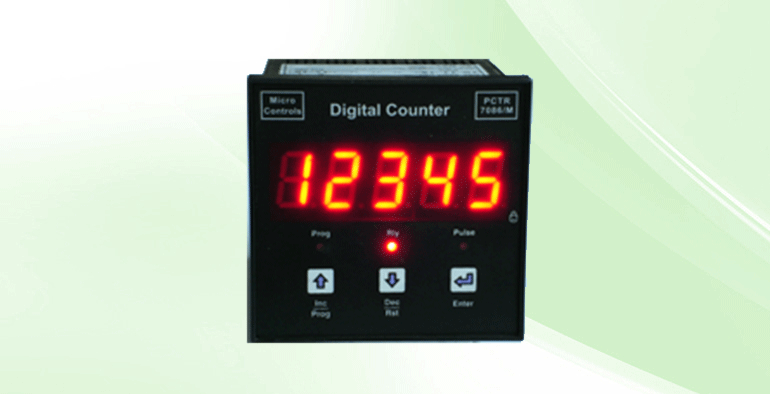

Counter with Large Display - PCTR 7086/M

Features :

  • Big size display for better
  • Visibility from longer distances
  • Parameters stored in battery less memory
  • 3 different modes of operation,
  • Non volatile memory for power
  • Failure for saving actual counts
  • Auto Reset facility
  • Relay, Pulse and Reset indicators
Technical Specifications :
Display : 5 digit, 1.0", narrow,7 segment, red
Programming : 3 x 1 Tactile keypad
Oper. Modes : Count Up, Show Actual & Set values
Range : 99999 counts max
Reset Input : Front Panel and Rear Panel
Auto Reset time : 0.1 to 999.9 seconds
Output : SPDT Relay, 230 VAC@5A, resistive
Input : 230 VAC, 50 Hz.
Memory : Li cell, CR2032, PCTR 7086M model
Mounting & Encl : Panel, ABS, 96x96x85mm

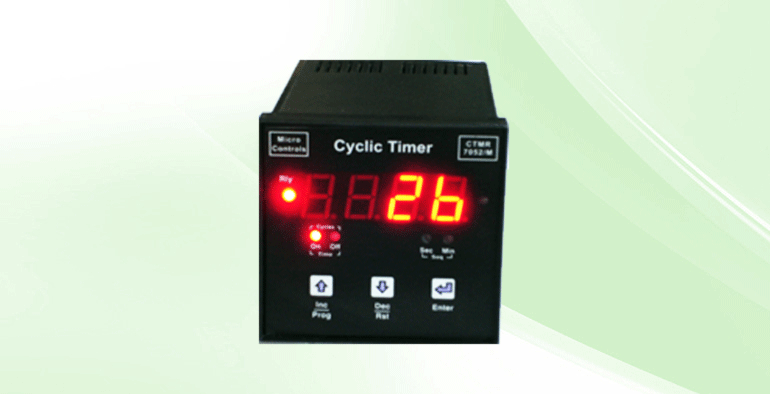

CYCLIC TIMER - CTMR 7052/M

Features :

  • Cyclic Timer with settable
  • Sequence and no of cycles
  • User settable time range - seconds or minutes
  • Timing range independently settable for ON cycle and OFF cycle
Technical Specifications :
Display : 4 digit, 0.5",7 segment, red
Programming : 3 x 1 Tactile keypad
Oper. Modes : Cyclic, preset cyclic or repetitive
Range : 1-9999 seconds/minutes
Reset Input : Front Panel and Rear Panel
Output : SPDT Relay, 230 VAC@5A, resistive
Input : 230 VAC, 50 Hz.
Memory : Li cell, CR2032, PCTR 7086M model
Mounting : Panel
Enclosure : ABS, 72x72x110mm

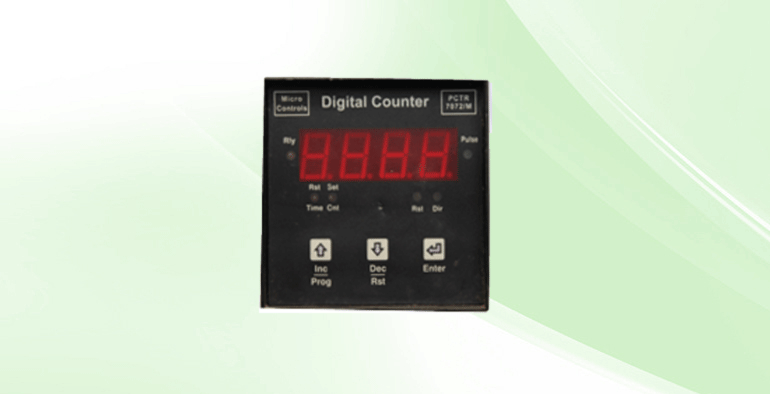

DIGITAL COUNTER - PCTR 7072/M

Features :

  • Parameters stored in battery less memory
  • Non volatile memory for power
  • Failure for saving actual counts
  • provided by a Lithium cell CR2032
  • Manual/Auto Reset facility
  • Relay, Pulse and Reset indicators
Technical Specifications :
Display : 4 digit, 0.5",7 segment, red
Programming : 3 x 1 Tactile keypad
Oper. Modes : Count Up, Show Actual & Set values
Range : 99999 counts max
Reset Input : Front Panel and Rear Panel
Auto Reset time : 0.1 to 999.9 seconds
Output : SPDT Relay, 230 VAC@5A, resistive
Mounting & Encl : Panel

DELAY TIMER - NFTMR 7057

Features :

  • User settable time range - seconds or minutes
  • User selectable delay modes On Delay or Off Delay
  • Indicators for Relay, Kbd lock, Time unit, Delay mode
Technical Specifications :
Display : 4 digit, 0.39",7 segment, red
Programming : 3 x 1 Tactile keypad
Oper. Modes : On Delay, Off Delay
Range : 1-9999 seconds/minutes
Reset Input : Front Panel and Rear Panel
Output : SPDT Relay, 230 VAC@5A, resistive
Input : 230 VAC, 50 Hz.
Mounting & Encl : Panel or Wall Mounting, PIRI Make, EDR 7060, ABS

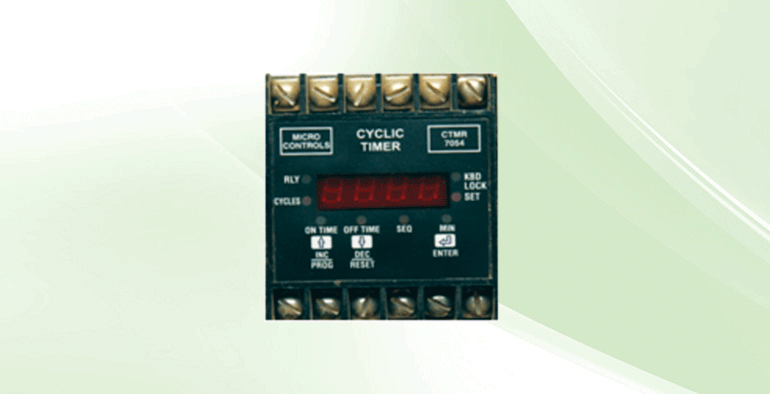

CYCLIC TIMER - CTMR 7054

Features :

  • Cyclic Timer with settable
  • Sequence and no of cycles
  • User settable time range - seconds or minutes
  • Timing range independently
  • Settable for ON cycle and OFF cycle
Technical Specifications :
Display : 4 digit, 0.39",7 segment, red
Programming : 3 x 1 Tactile keypad
Oper. Modes : Cyclic, preset cyclic or repetitive
Range : 1-9999 seconds/minutes
Reset Input : Front Panel and Rear Panel
Output : SPDT Relay, 230 VAC@5A, resistive
Input : 230 VAC, 50 Hz.
Mounting & Encl : Panel or Wall Mounting PIRI Make, EDR 7060, ABS

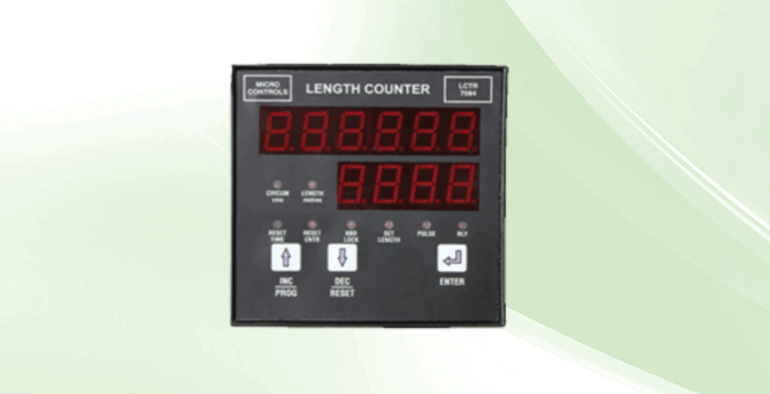

LENGTH COUNTER - LCTR 7084

Features :

  • 6 digit length totaliser-metres
  • 4 digit batch counter for length
  • User settable circumference in cms
  • Non volatile memory for power failure
  • Auto Reset facility
Technical Specifications :
Display : 6+4 digit, 0.5",7 segment, red
Programming : 3 x 1 Tactile keypad
Oper. Modes : Batch Counter, Totaliser
Length : Settable in metres
Reset Input : Front Panel and Rear Panel
Sensor : PNP, No Input
Output : SPDT Relay, 230 VAC@5A, resistive
Input : 230 VAC, 50 Hz.
Memory : Li cell, CR2032
Mounting & Encl : Panel, ABS, 96x96x85mm

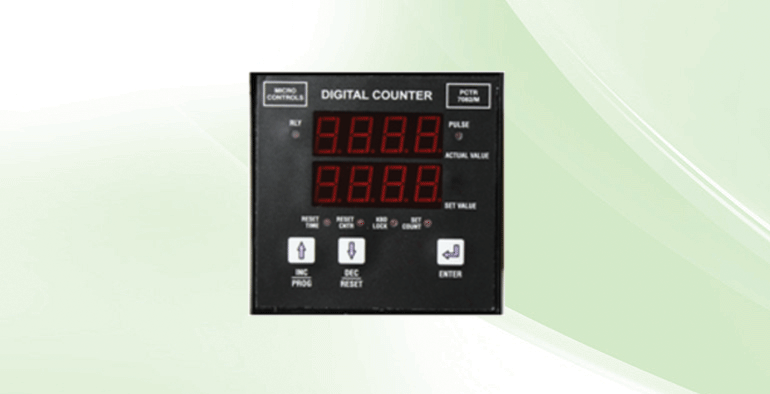

DIGITAL COUNTER - PCTR 7073/M

Features :

  • Separate display to indicate
  • Set value and actual value
  • Parameters stored in battery less memory
  • Non volatile memory for power failure for saving actual counts
  • Auto Reset facility
Technical Specifications :
Display : 4+4 digit, 0.5",7 segment, red
Programming : 3 x 1 Tactile keypad
Oper. Modes : Count Up, Show Actual & Set values
Range : 99999 counts max
Reset Input : Front Panel and Rear Panel
Auto Reset time : 0.1 to 999.9 seconds
Output : SPDT Relay, 230 VAC@5A, resistive
Input : 230 VAC, 50 Hz.
Memory : Li cell, CR2032, PCTR 7073M model
Mounting & Encl : Panel, ABS, 96x96x85mm

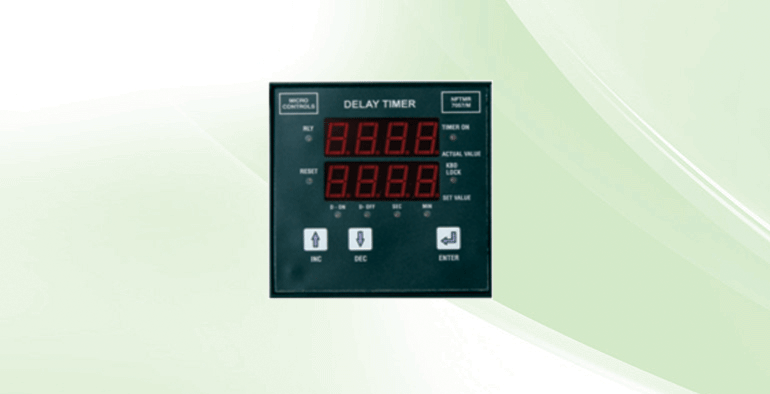

DELAY TIMER - NFTMR 7057

Features :

  • Separate display to indicate
  • Set value and actual value
  • User settable time range - seconds or minutes
  • User selectable delay modes
Technical Specifications :
Display : 4+4 digit, 0.5",7 segment, red
Programming : 3 x 1 Tactile keypad
Oper. Modes : On Delay, Off Delay
Range : 1-9999 seconds/minutes
Reset Input : Front Panel and Rear Panel
Output : SPDT Relay, 230 VAC@5A, resistive
Input : 230 VAC, 50 Hz.
Mounting & Encl : Panel, ABS, 96x96x85mm

DIGITAL COUNTER - PCTR 7085/M

Features :

  • Separate display to indicate
  • Set value and actual value
  • Parameters stored in battery less memory
  • 3 different modes of operation,
  • Non volatile memory for power
  • Failure for saving actual counts
  • Auto Reset facility
Technical Specifications :
Display : 4+4 digit, 0.5",7 segment, red
Programming : 3 x 1 Tactile keypad
Oper. Modes : Count Up, Show Actual & Set values
Range : 99999 counts max
Reset Input : Front Panel and Rear Panel
Auto Reset time : 0.1 to 999.9 seconds
Output : SPDT Relay, 230 VAC@5A, resistive
Input : 230 VAC, 50 Hz.
Memory : Li cell, CR2032, PCTR 7085M model
Mounting & Encl : Panel, ABS, 96x96x85mm

DIGITAL COUNTER - PCTR 7077/M

Features :

  • Separate display to indicate
  • set value and actual value
  • Parameters stored in battery less memory
  • Non volatile memory for power
  • Failure for saving actual counts
  • Auto Reset facility
Technical Specifications :
Display : 4 + 4 digit, 0.41",7 segment, red
Programming : 3 x 1 Tactile keypad
Oper. Modes : Count Up, Show Actual & Set values
Range : 99999 counts max
Reset Input : Front Panel and Rear Panel
Auto Reset time : 0.1 to 999.9 seconds
Output : SPDT Relay, 230 VAC@5A, resistive
Input : 230 VAC, 50 Hz.
Memory : Li cell, CR2032, PCTR 7077M model
Mounting & Encl : Panel, ABS, 72 x 72 x 110 mm

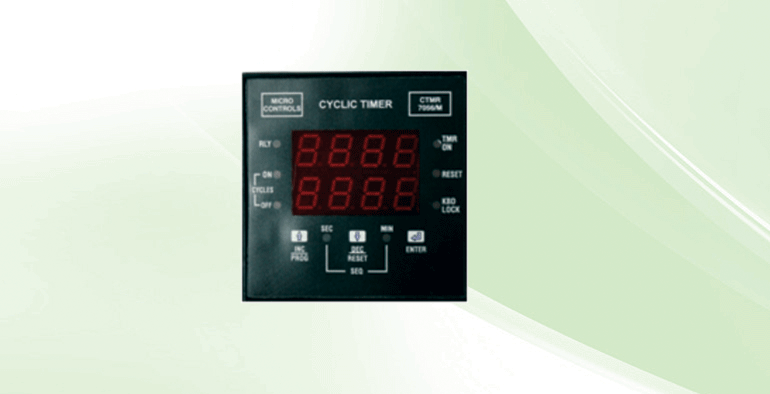

CYCLIC TIMER - CTMR 7056

Features :

  • Cyclic Timer with settable
  • Sequence and no of cycles
  • User settable time range - seconds or minutes
  • Timing range independently
  • Settable for ON cycle and OFF cycle
Technical Specifications :
Display : 4 + 4 digit, 0.41",7 segment, red
Programming : 3 x 1 Tactile keypad
Oper. Modes : Cyclic, preset cyclic or repetitive
Range : 1-9999 seconds/minutes
Reset Input : Front Panel and Rear Panel
Output : SPDT Relay, 230 VAC@5A, resistive
Input : 230 VAC, 50 Hz.
Mounting & Encl : Panel or Wall Mounting, ABS, 72 x 72 x 110 mm

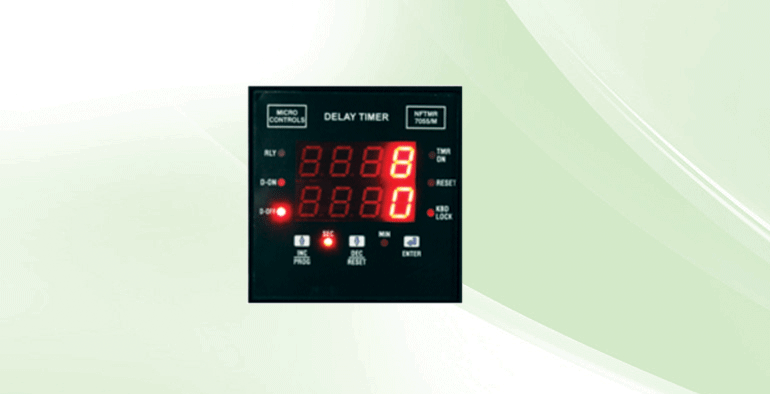

DELAY TIMER - NFTMR 7055

Features :

  • Separate display to indicate
  • Set value and actual value
  • User settable time range - seconds or minutes
  • User selectable delay modes
Technical Specifications :
Display : 4 + 4 digit, 0.41",7 segment, red
Programming : 3 x 1 Tactile keypad
Oper. Modes : On Delay, Off Delay
Range : 1-9999 seconds/minutes
Reset Input : Front Panel and Rear Panel
Output : SPDT Relay, 230 VAC@5A, resistive
Input : 230 VAC, 50 Hz.
Mounting & Encl : Panel, ABS, 72 x 72 x 110 mm
